W7YAZ - Frank

(ex-K3YAZ)

TUCSON, AZ

Back to Arizona-AM Page

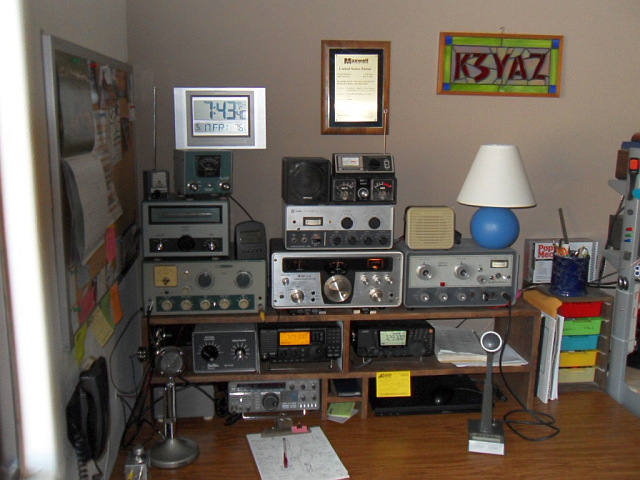

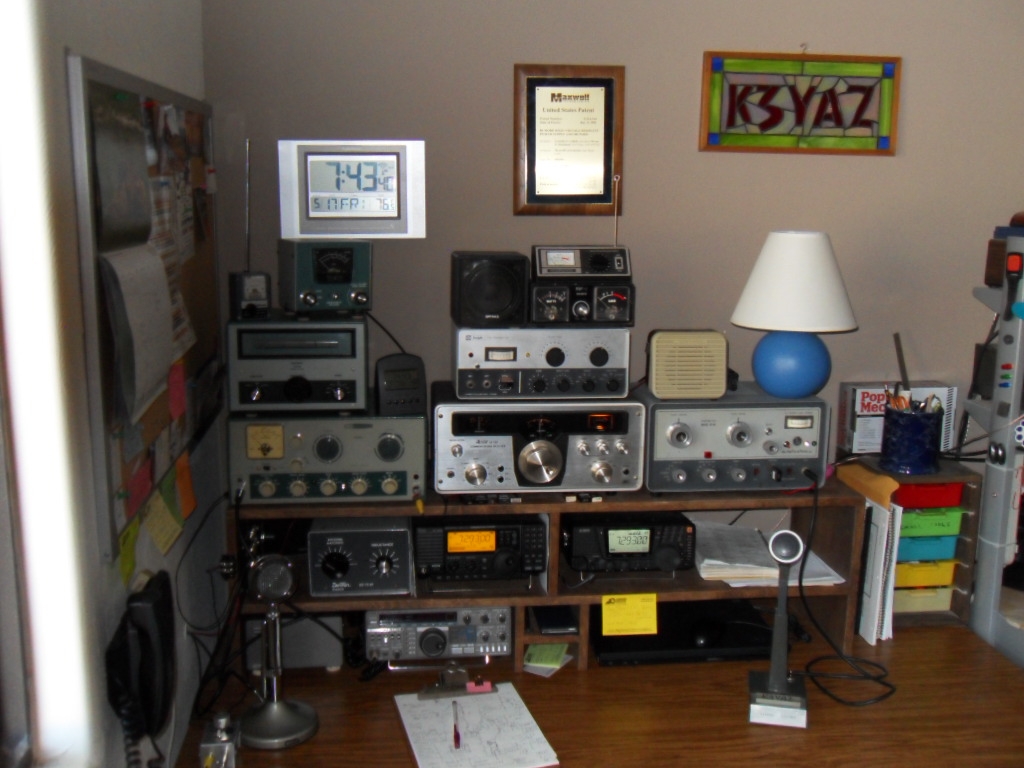

Frank's compact, all-mode operating position. The vintage AM transmitters feature his well-known, twin-6146 Heathkit DX-60 (with HT-10 VFO), a venerable Hallicrafters HT-40 and a Knight T-60. These are paired with 3 receivers, an Allied AX-190  (center), an Icom R-75 and an Alinco DXR-8.   A Kenwood TS-430 at the bottom provides SSB capability.

(Click here for larger photo ~400K)

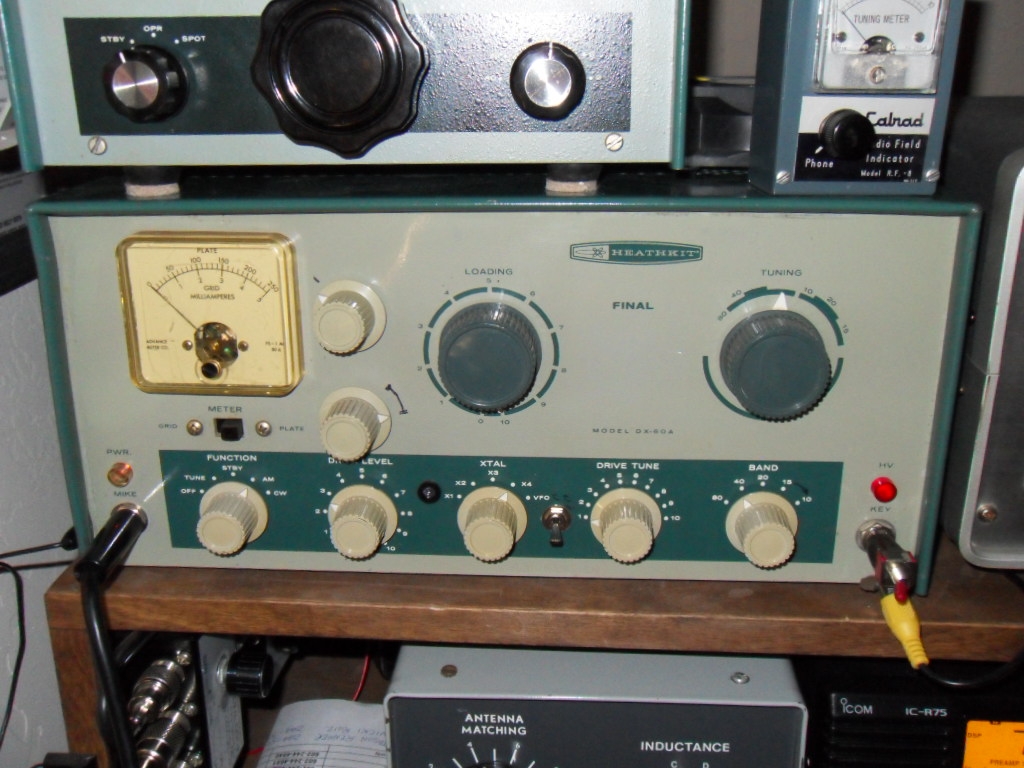

The almost-stock exterior of the hotrod DX-60 belies the extensive modifications  that have turned this transmitter into  a very substantial AM rig.  It now  contains TWO 6146's in the final and is capable of both controlled-carrier and conventional screen modulation.  The details of these modifications are shown below.  Oh, and it sounds great on the air with effortless, extended-range audio.

(Click here for larger photo ~300K)

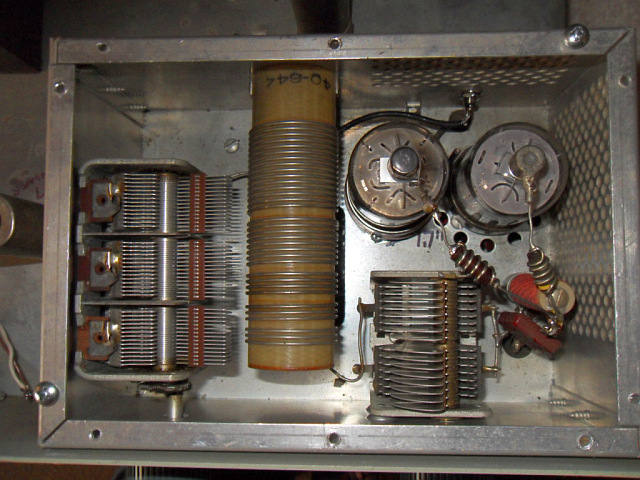

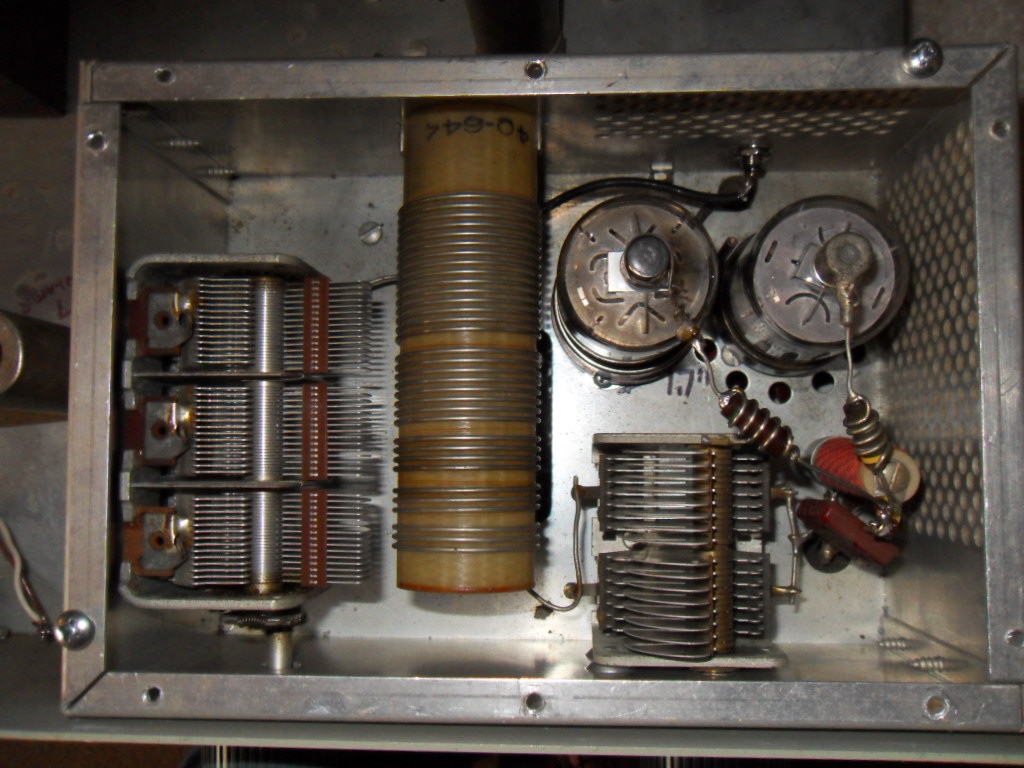

The inside view of the DX-60 final amplifier compartment showing the snug, but adequate,spacing of the two 6146's.  The stock plate-tank components were able to cope with the higher power level.

(Click here for larger photo ~400K)

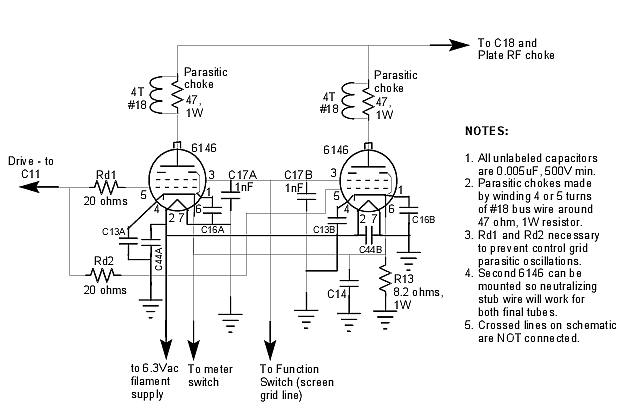

The "double-barrelled" 6146 modification.


Click on the diagram at right, or HERE, for a PDF file descrbing this modification and those to the power supply in increase its output to 750 volts.


Additional modifications were  done to the audio  section to  enhance its operation and the allow independent setting of the AM carrier level.

(Click here for the Final-Amplifier /Power-Supply modification schematics - PDF)



(Click here for the schematic to the Audio Modifications - PDF)







Frank Cathell, W7YAZ

(Click here for larger photo ~300K)
