13-watt MOSFET Xmtr

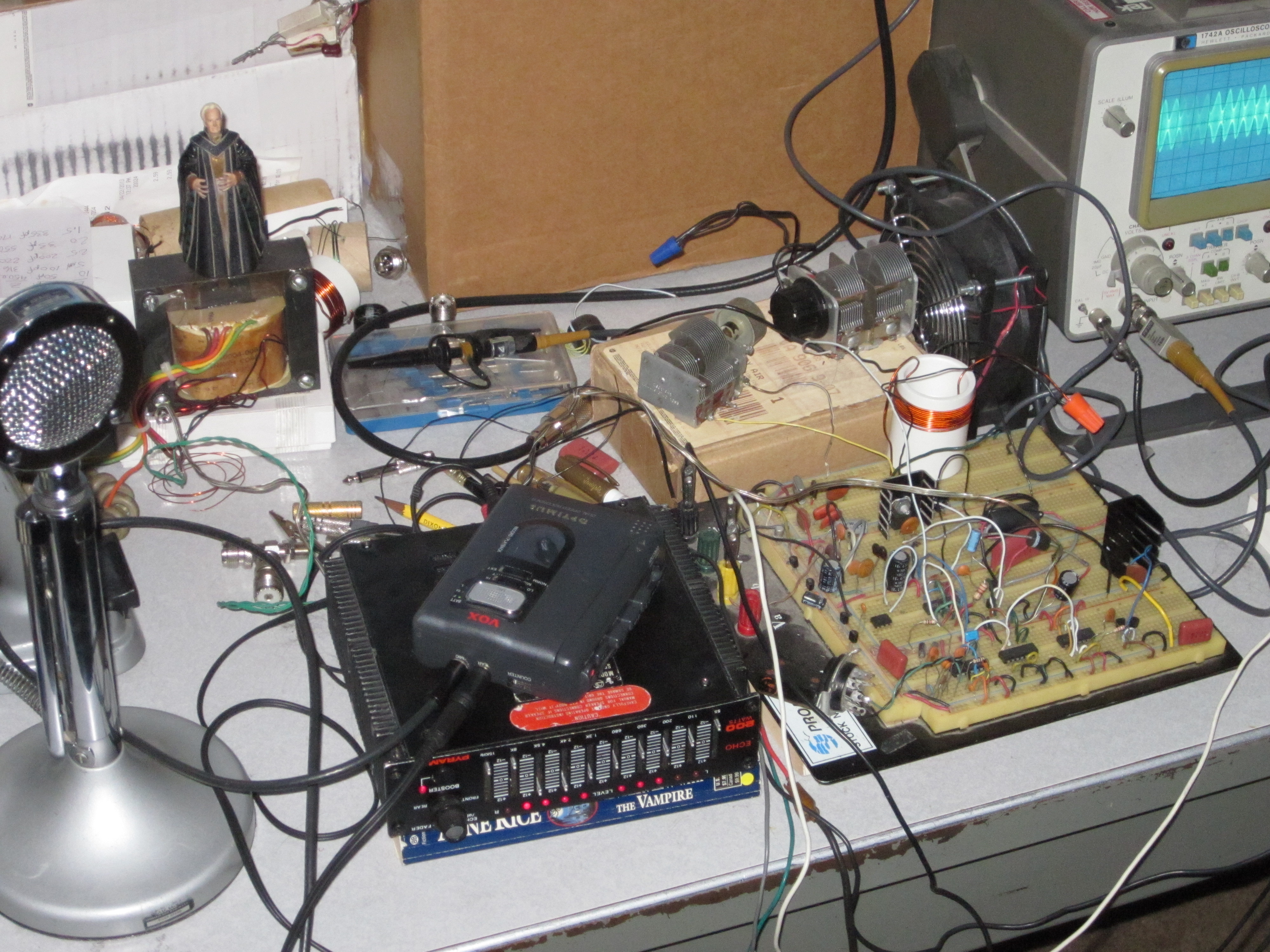

Kirk's astounding 13-watt, breadboard MOSFET transmitter.  The D-104 mike feeds a cassette recorder preamp/agc amp which then drives an automobile stereo-amp modulator.  The modulation transformer (above left) is a multi-tap, 60 Hz power transformer whose poor audio performance is compensated for by the graphic EQ in the modulator.  The RF chain is a handful of IC's driving a pair of MOSFETs in push-pull.  The final output is transformed up to a usable impedance level and then matched to the antenna by a pi network (tuning/loading caps in upper right).
