K7BDY - Martin Heiman

Oro Valley, AZ


{{ On Feb. 24, 2011, Martin became a Silent Key }}


Back to Tucson AM Page



3-minute Video by David, W6PSS made in early 1990's at Martin's ranch near Show Low, AZ
Martin is showing David the Gates BC-250GY ex-broadcast transmitter
he uses on 160 meters



Click Here or on above image for YouTube video



4-minute Video that continues the tour of the Gates BC-250GY transmitter
on the inside, showing the vacuum tubes and circuitry used to
generate the plate-modulated, 250-watt carrier wave.



Click Here or on above image for YouTube video




4.5-minute Video of Martin, K7BDY, showing David, W6PSS, his 900-foot-long
Beverage receiving antenna aimed at Southern California.




Click Here or on above image for YouTube video




Some pictures of Martin at the 2009 Sierra Vista Hamfest from Wally, KB7GAI



Martin with Leo, W7JPI

Martin with Jim, K7EWE on left and Roy, KB7JPL on right.


Some pictures of Martin's Tucson QTH circa 2008

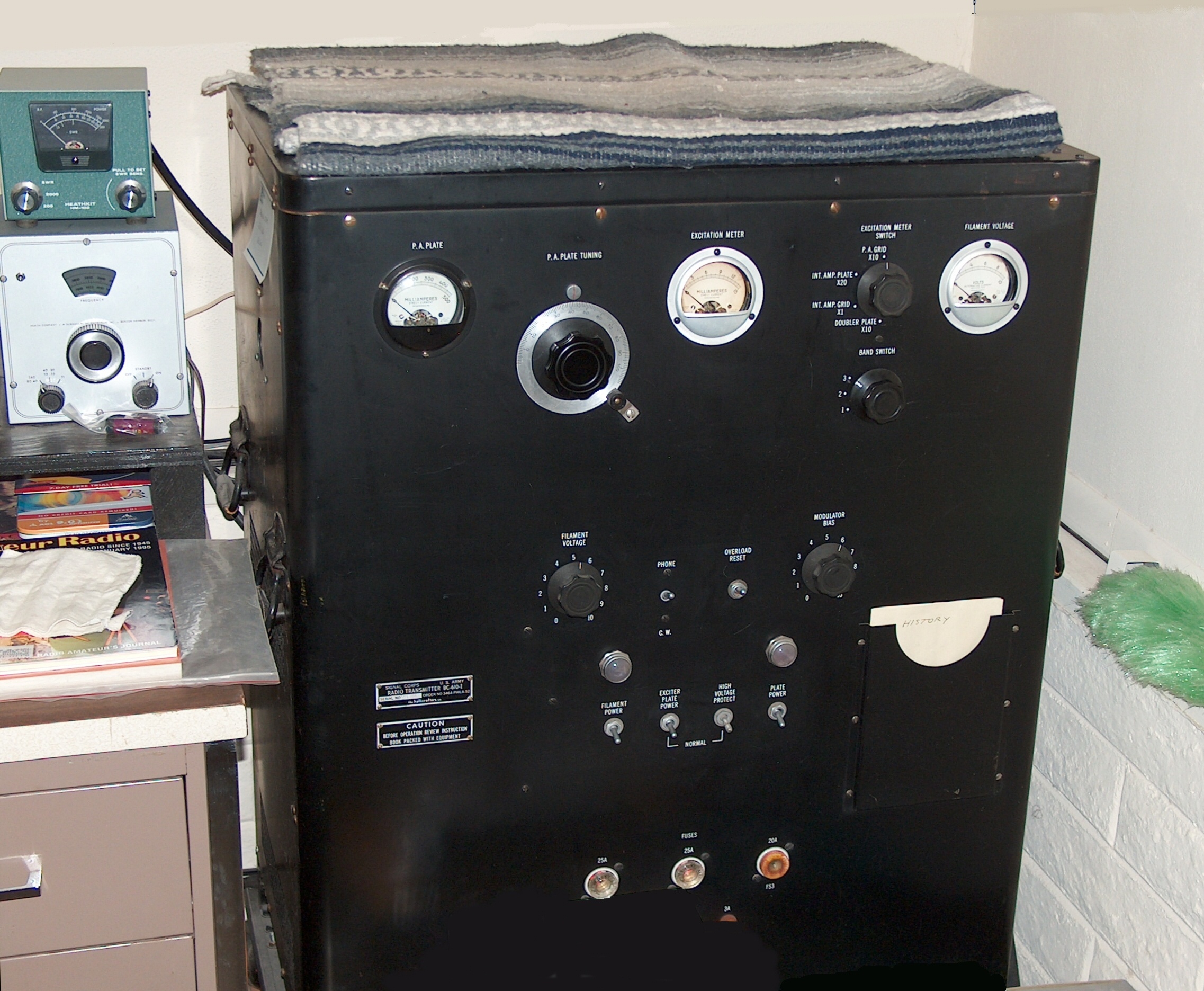

The AM Voice of K7BDY from Oro Valley/Tucson - the well-maintained BC-610I.

(Click here for larger photo ~100K)

{Click here for LARGEST photo  ~1Meg}

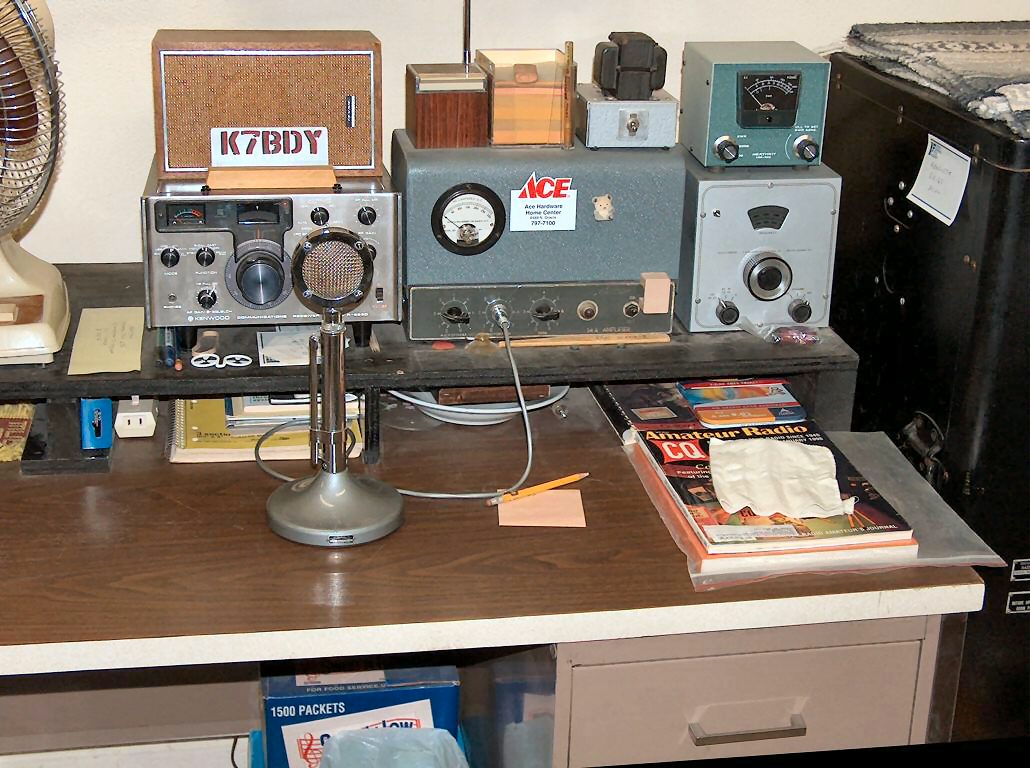

The AM operating position - essential functionality on a desktop: Kenwood R-599 Receiver, Speech Amp for BC-610, Heath VFO for clean stability and Heath Wattmeter.  Microphone is an unamplified D-104.

(Click here for larger photo ~100K)

{Click here for LARGEST photo  ~1Meg}

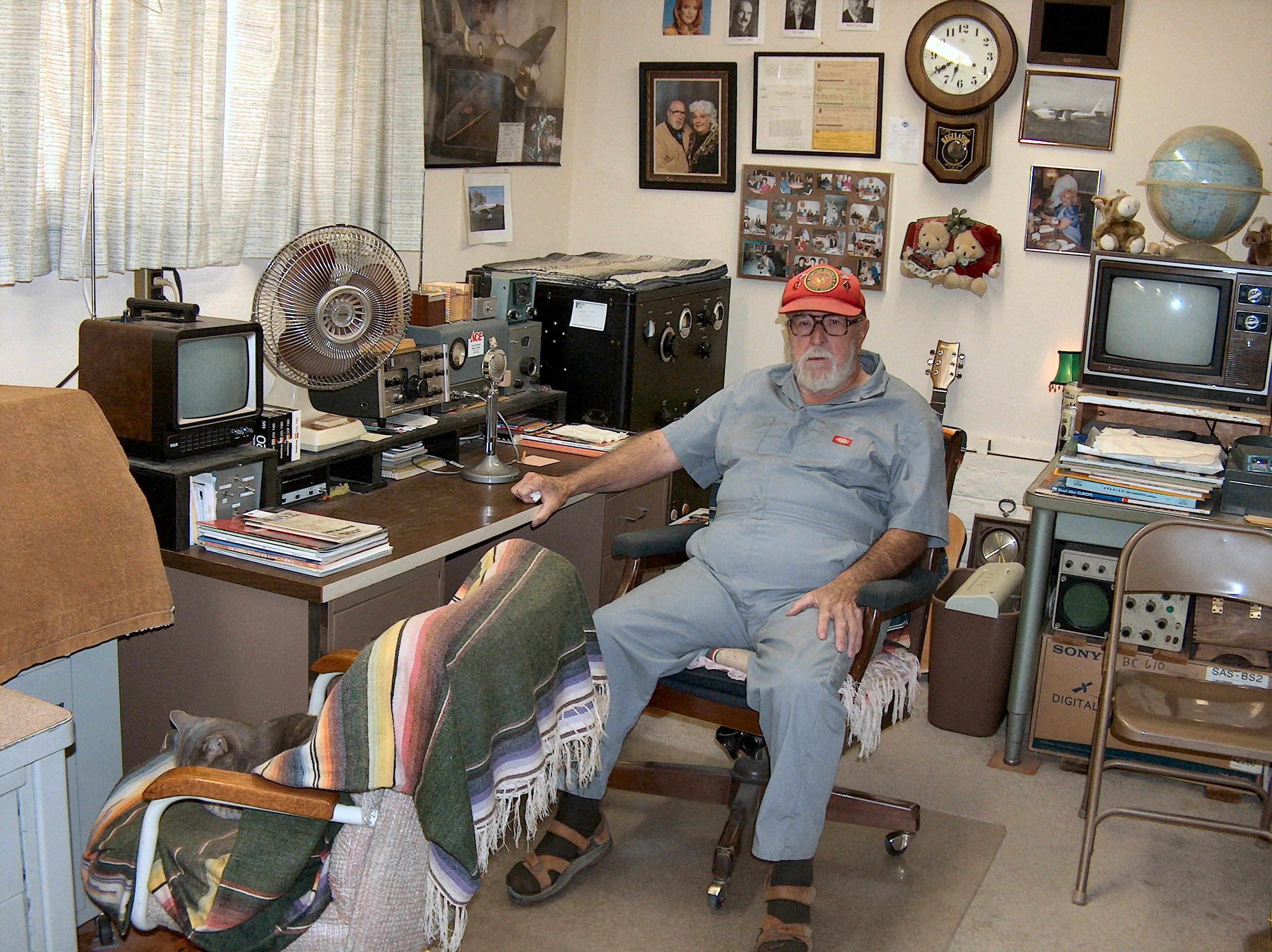

Martin, K7BDY, at the AM operating position.  Shack is spacious add-on at the rear of the house.

(Click here for larger photo ~100K)

{Click here for LARGEST photo  ~1Meg}

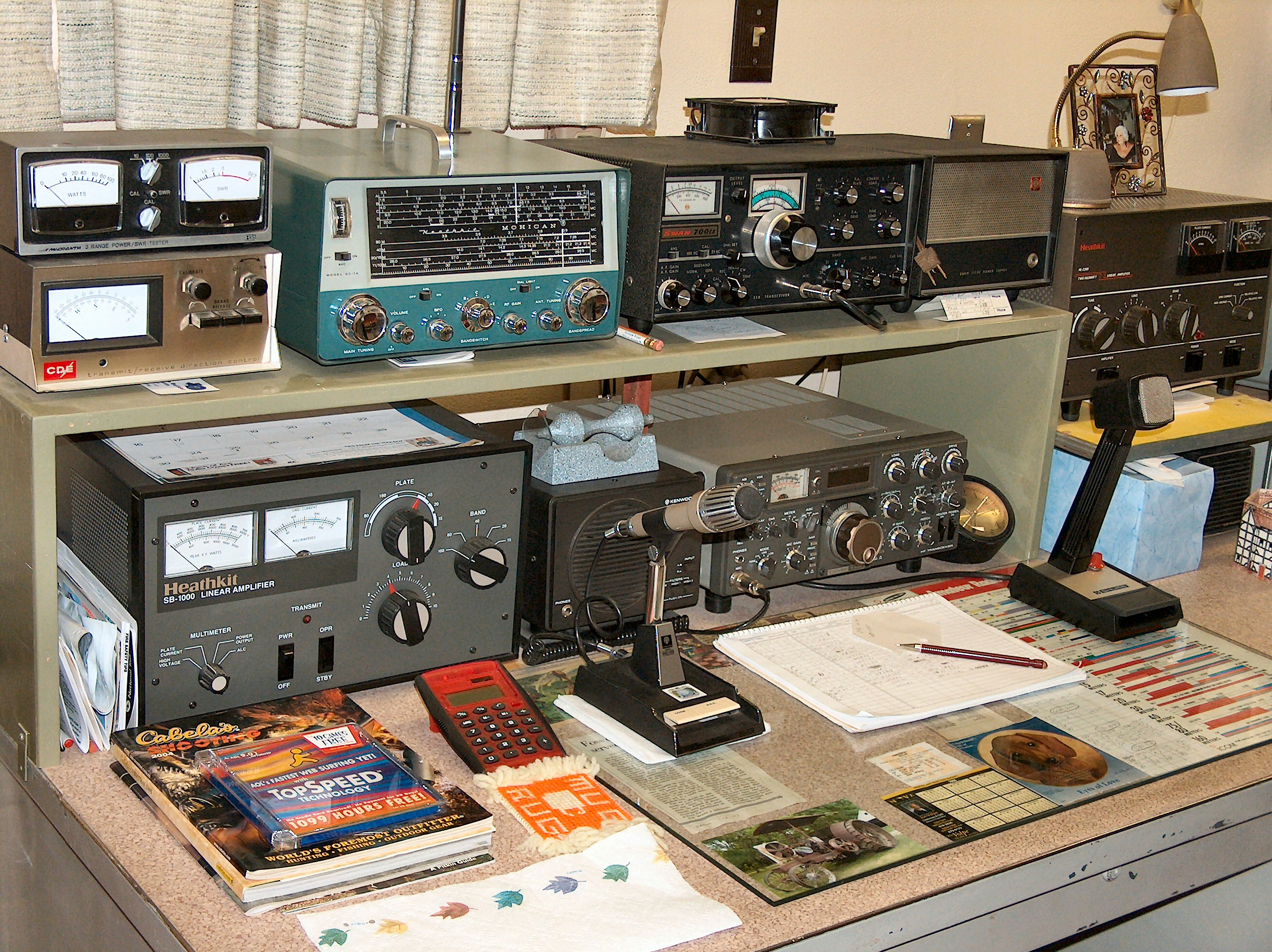

The SSB position contains vintage transceivers (Swan 700cx, Kenwood TS-530s),  Heath SB-1000 and HL-2200 Linear Amplifiers, and a Heath Mohican general-coverage receiver.

(Click here for larger photo ~100K)

{Click here for LARGEST photo  ~1Meg}

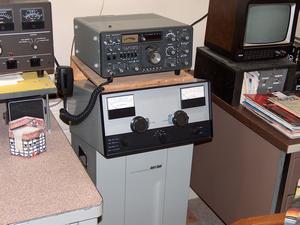

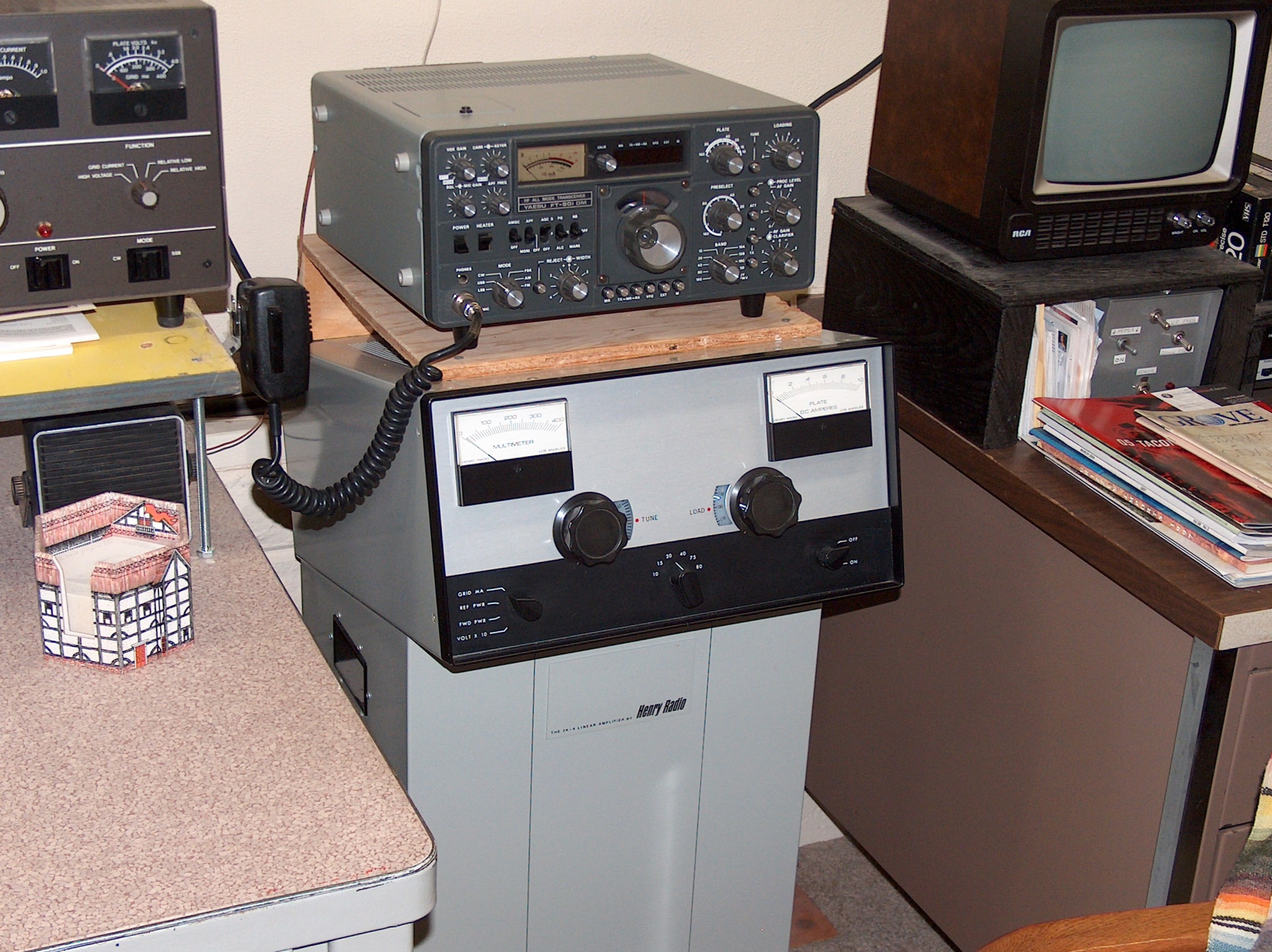

SSB operation is supplemented with a Yaesu FT901 transceiver and a Henry 2K-4 Amplifier.

(Click here for larger photo ~100K)

{Click here for LARGEST photo  ~1Meg}

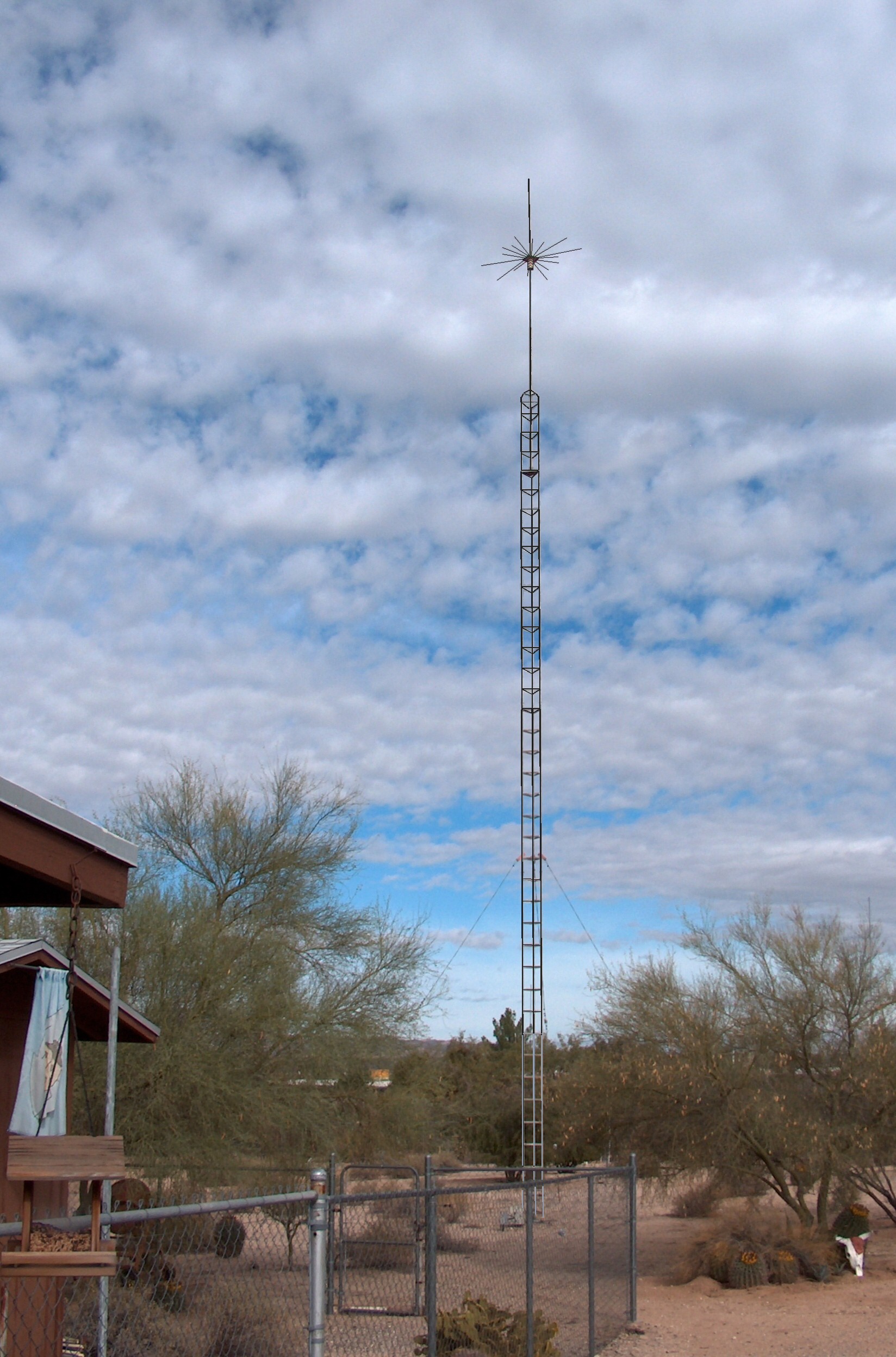

A key part of the K7BDY 160-meter system is this 70-foot, series-fed vertical monopole with capacitive tophat and top-end loading coil.

(Click here for larger photo ~100K)

{Click here for LARGEST photo  ~1Meg}

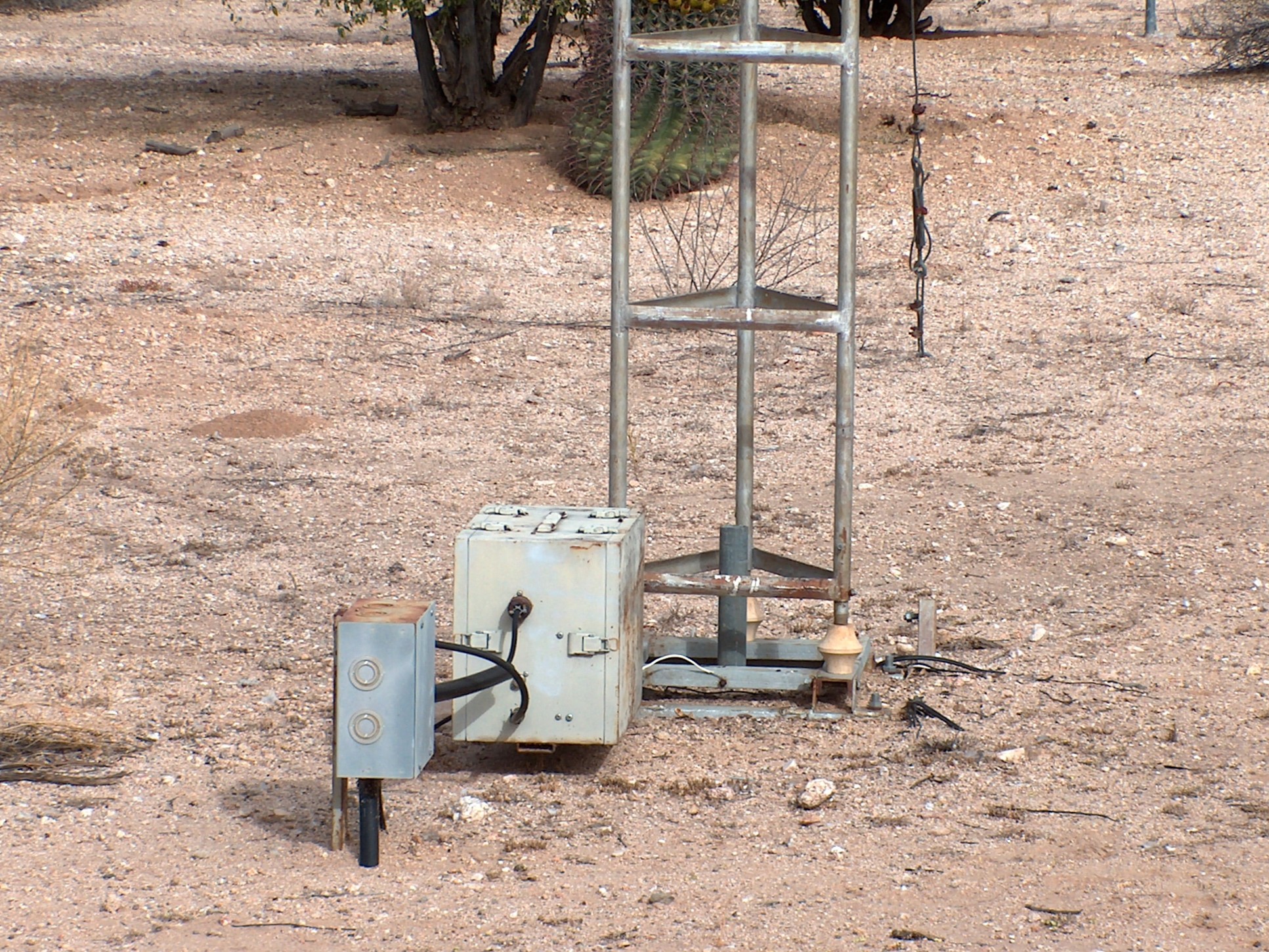

A remotely controlled, motor-driven variable inductor at the base of the vertical allows precise matching over the entire band.  It is housed in the larger, gray weatherproof box.

(Click here for larger photo ~100K)

{Click here for LARGEST photo  ~1Meg}

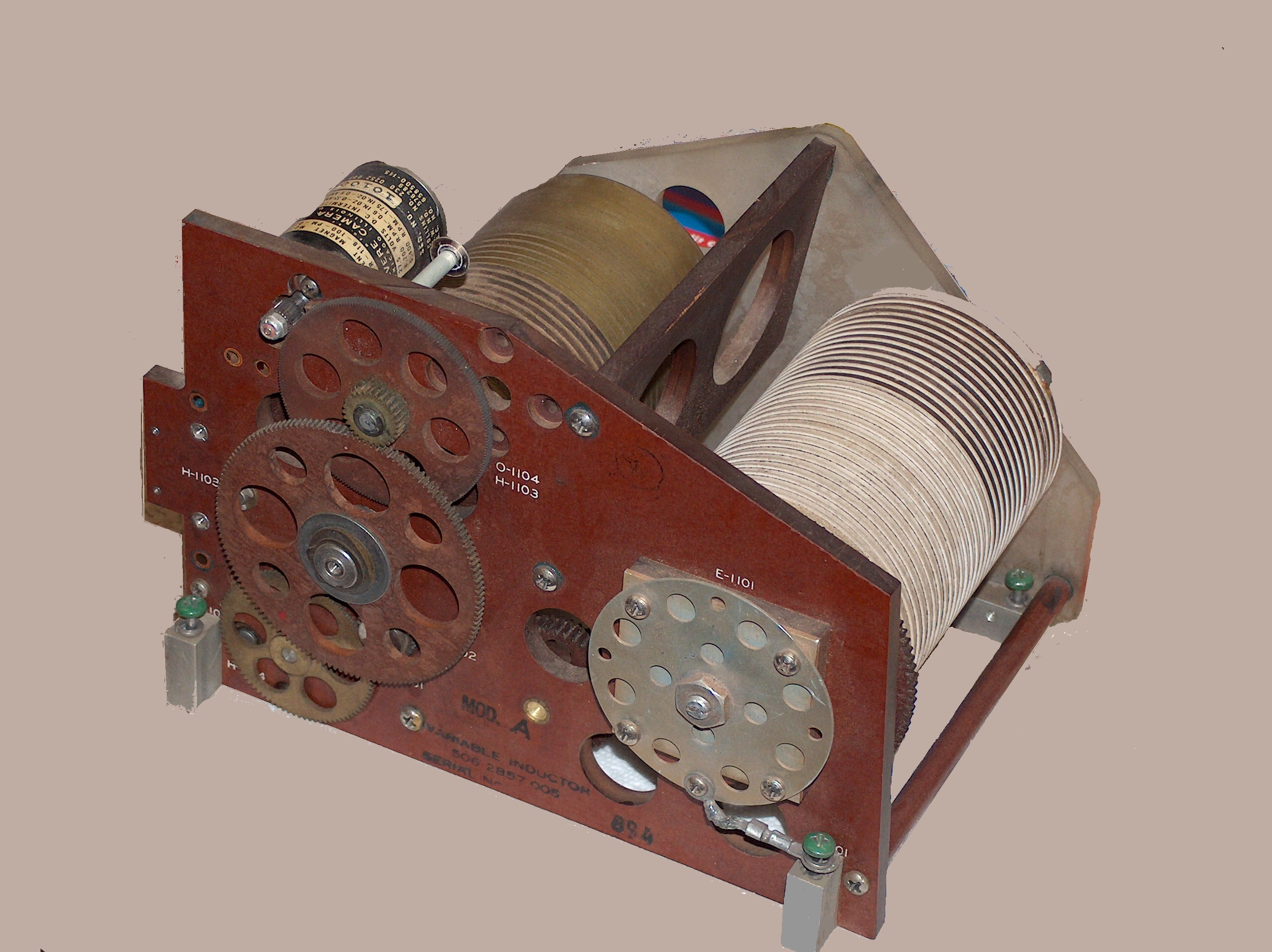

The "secret sauce" in the 160-meter stew: a surplus variable inductor of unique design for antenna matching.  It winds or unwinds a flexible silver-plated strap around a ceramic form as driven by the reversible DC motor and gear train.

(Click here for larger photo ~100K)

{Click here for LARGEST photo  ~1Meg}

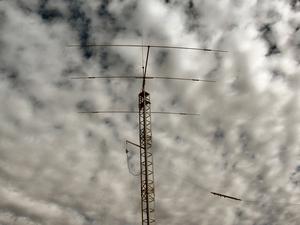

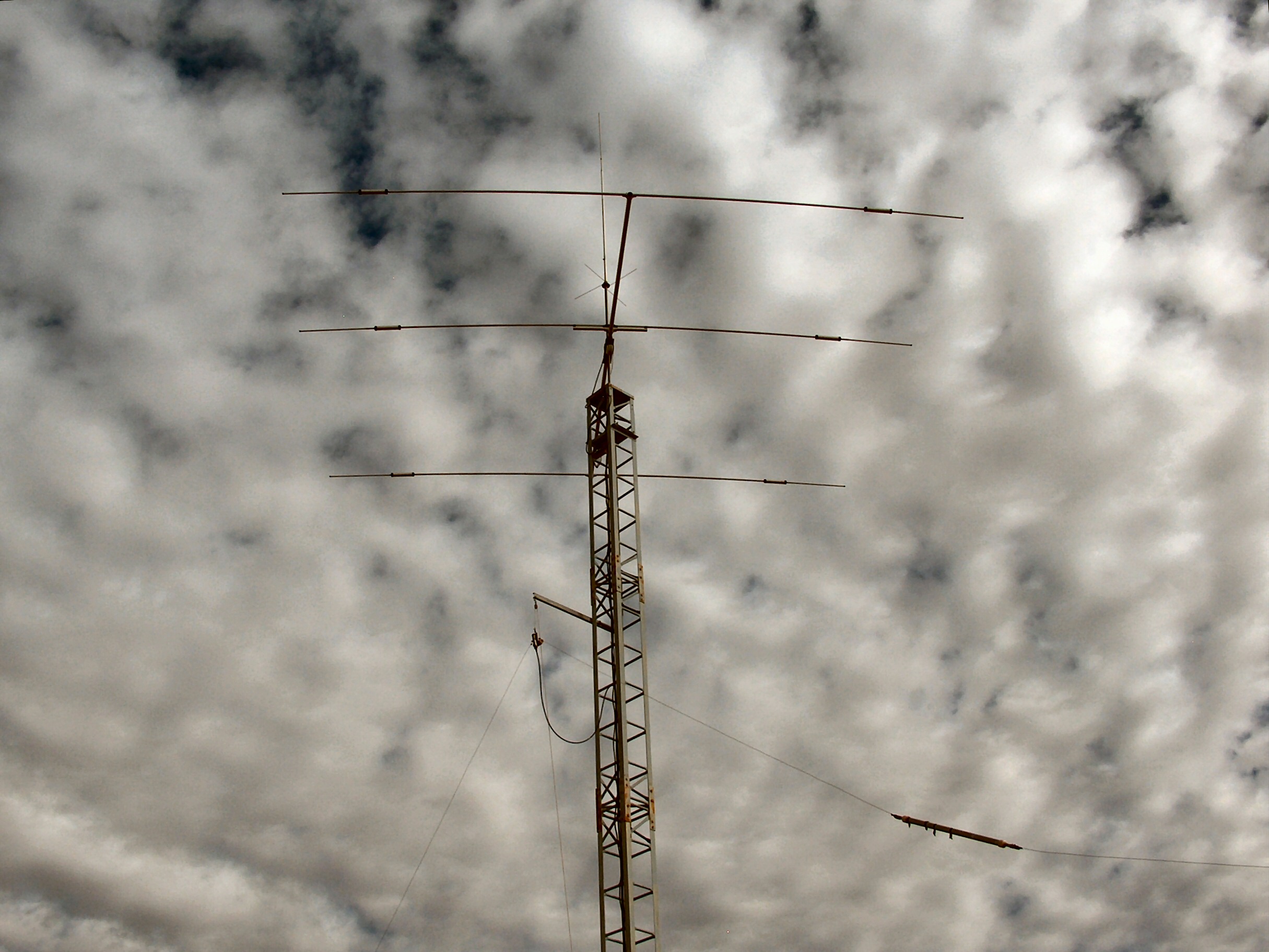

Antenna requirements for higher bands are fulfilled by a multiband 3-element beam and wire dipole atop a 60-foot tower.

(Click here for larger photo ~100K)

{Click here for LARGEST photo  ~1Meg}
