W1ZD AN/ART-13 Project
Back to W1ZD Page
|
|
|
|
|
|
|

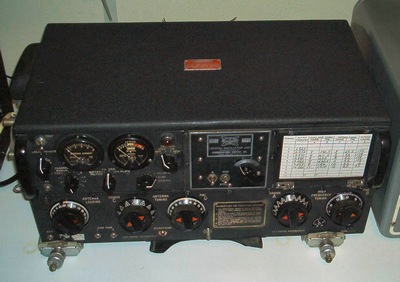

The
Collins AN/ART-13 Transmitter. It runs an 813 in the final,
modulated by a pair of 811A's for 180 watts output. This
particular unit was modified for crystal control. |
|
|
|
|
|
|
Top
view of the ART-13. |
|
|
|
|
|
|
|

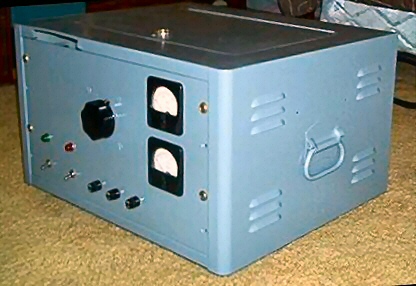

The
ART-13 power supply. It outputs +1400V and +400V for tube B+ and
+28VDC @ 10A for the filaments and autotune motors. |
|
|
|
|
|
|
|

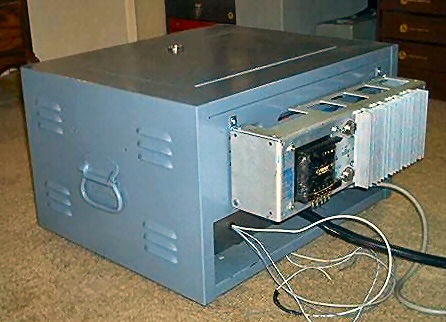

The
power supply rear view showing the +28VDC supply on the rear panel. |
|
|
|
|
|
|
|

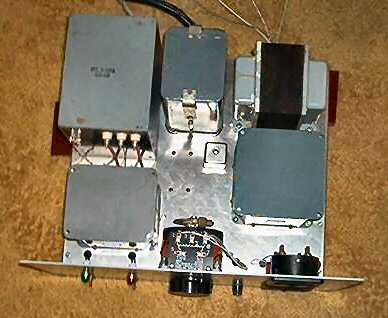

Top
View of power supply with case removed, showing HV and MV transformers,
filter chokes and capacitors. |
|
|
|
|
|
|
|
||
|
|
|
|
 |
||

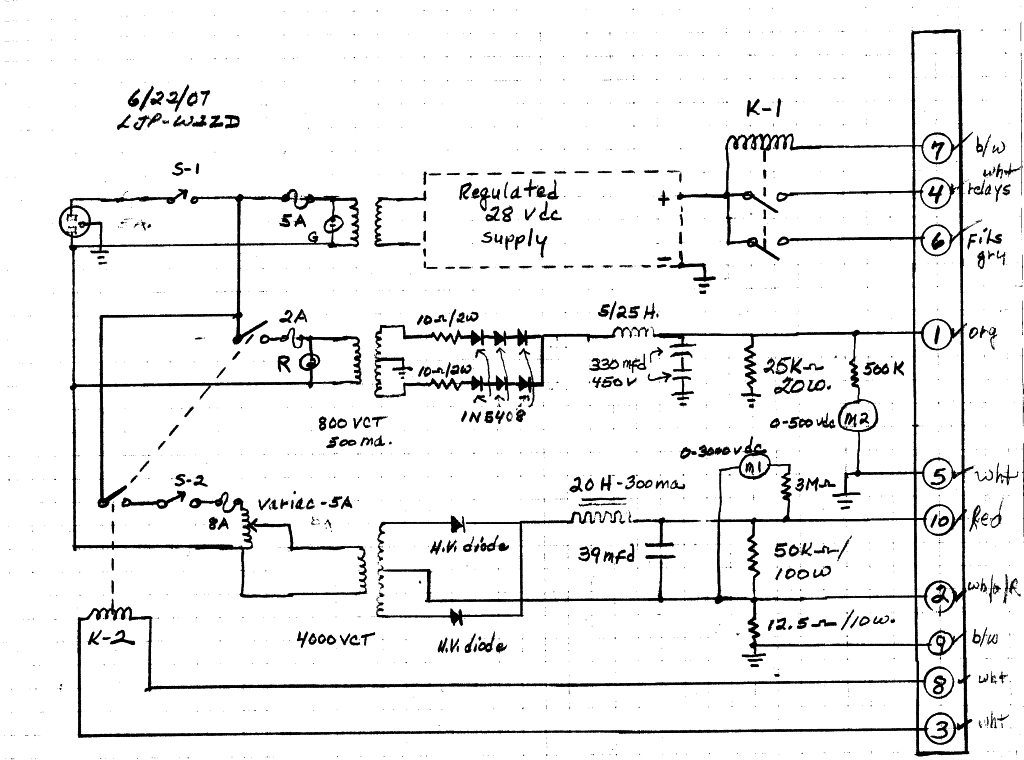

The W1ZD AN/ART-13 power supply schematic. Click here, or inside the above graphic, for higher resolution. |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
||
|
|
|
|
