To 813x813 Rig Photos

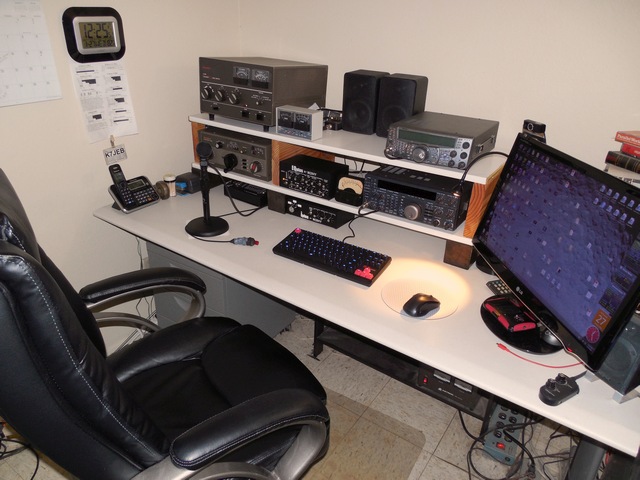

The very modest K7JEB hamshack. Bottom shelf, l - r, holds a Heathkit SA-2060A Antenna Tuner, a W2IHY EQPlus audio processor and a Kenwood TS-850SAT transceiver. Top shelf holds a Heathkit HL-2200 Linear Amplifer running a pair of 3-500Z's, an Autek WM-1 computing SWR/Pwr meter and a Kenwood TS-2000 all-band transceiver.  Below the first shelf is a W2IHY 8-band equalizer and Iplus switch.  The microphone is a Behringer knock-off of the Shure SM58.

Click here for high-res picture (1.3 Megs)

Note on Operating AM with Linear Amplifiers
